Gas-fired steam humidification reduces energy costs when compared to electric steam by around 60%

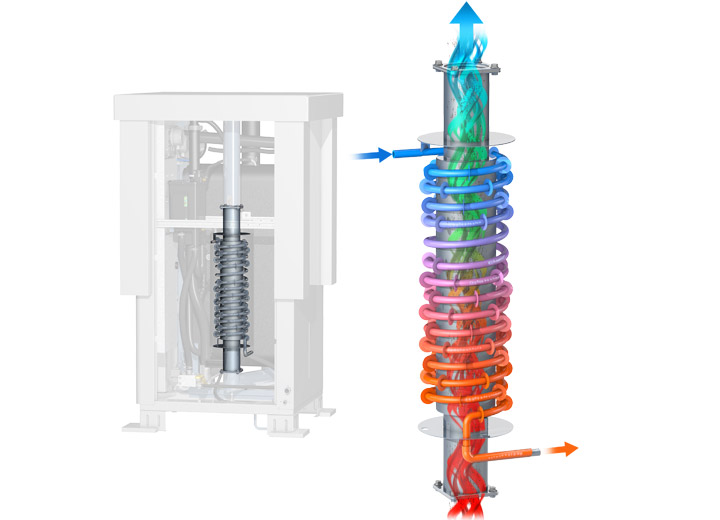

The secondary condensing heat exchanger recovers waste heat from flue gases into the incoming water supply, reducing energy consumption

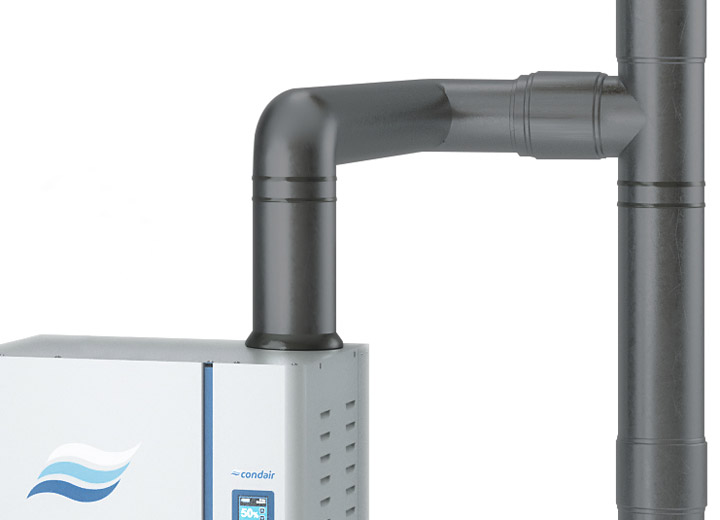

Cooler flue gases enable pvc rather than stainless steel flue pipes to be used, reducing installation costs
The latest touch screen control panel provides intuitive operation and advanced reporting
Wide range of models from wall-mountable 21 and 41kg/h units to 246kg/h systems

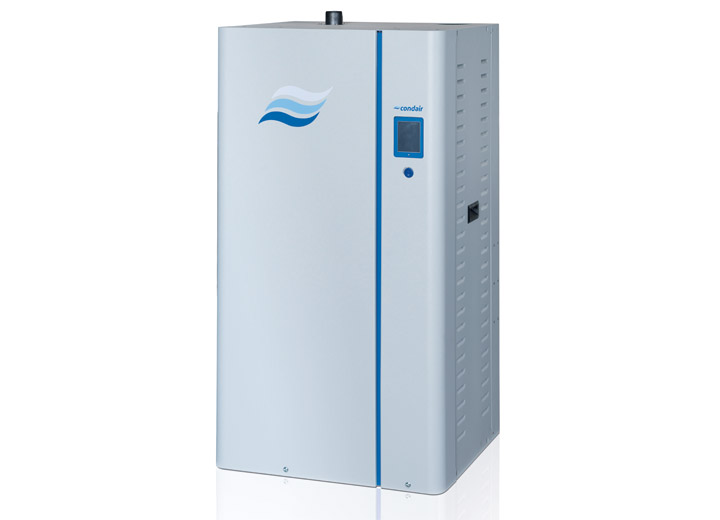

Condair GS - condensing gas-fired steam humidifier
The Condair GS offers steam humidification with low operating costs. The economy of using gas makes this humidifier around 60% cheaper to power than an equivalent electric steam humidifier.
This gas-fired humidifier incorporates ultra efficient condensing technology. Heat is recovered from the exhaust flue gases and used to pre-heat the incoming water supply. This saves energy, as well as improving humidity control.
As the exhaust gases are cooler, a plastic rather than stainless steel flue can be used, simplifying installation and reducing the cost.

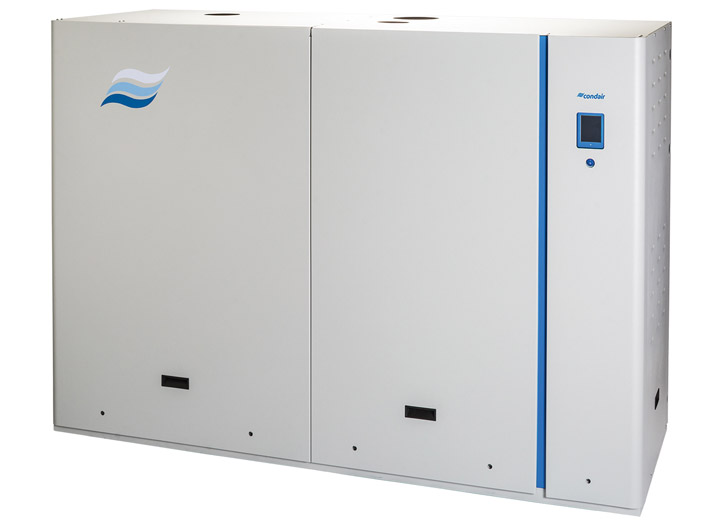

Models range from 21kg/h to 246kg/h with the 21 and 41kg/h units available as wall-mounted systems. This makes them ideal for replacing existing wall-mounted electric steam humidifiers.
A lip-free design on the water tank makes removing scale easy and a curved design on the stainless steel heat exchangers dislodges scale during normal operation.

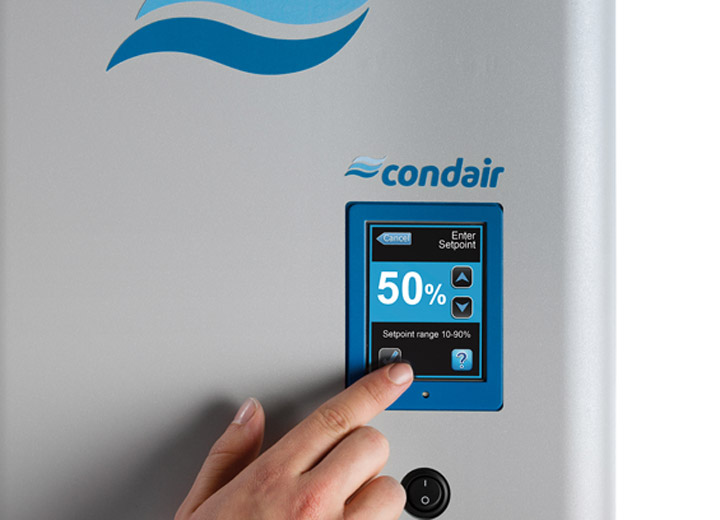

The system incorporates the latest touch screen control technology and can connect to Modbus and BACnet IP/MSTP (slave) as standard.
Get expert advice on gas-fired steam humidification
Features and benefits
- Condensing technology saves energy and reduces energy consumption
- Gas humidification is 60% cheaper than electric steam
- Can be used with plastic flue rather than stainless steel due to cooler flue gas
- Incorporates the latest touch screen control panel with USB port and BMS
- Designed for easy servicing with good access and lip-free water tank
Flat burner & spark ignition
PODCAST: HOW TO SELECT & SIZE A HUMIDIFIERLearn how to plan a humidification project.
Free 10-point guide to specifying humidifiers
Download your 10-point guide to specifying humidifiers and get an easy-to-follow overview for planning humidifier projects.
It covers topics such as psychrometrics, product sizing, technology selection, installation considerations and hygiene management.
